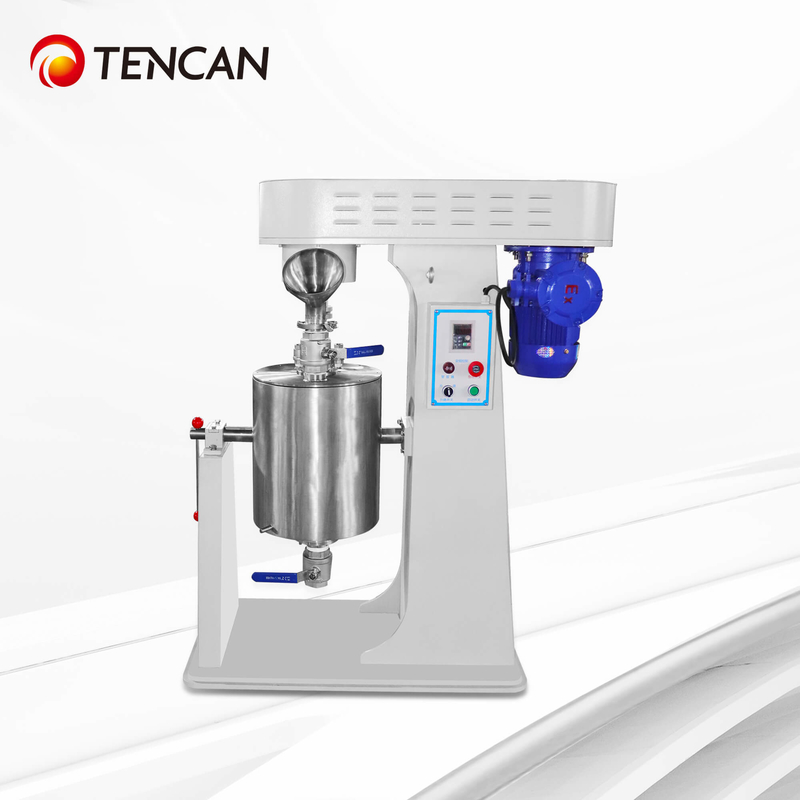

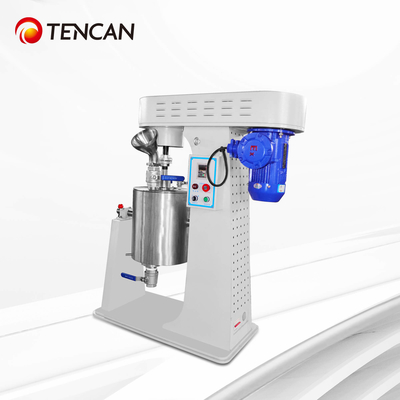

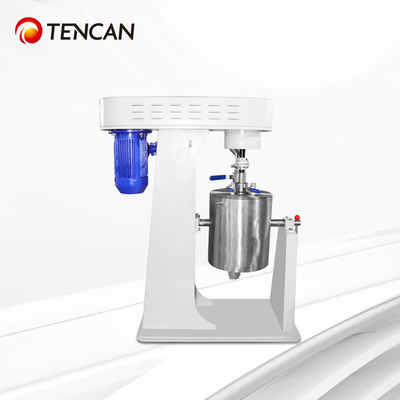

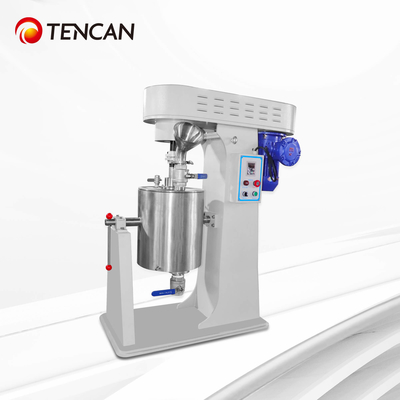

Tencan JM-5 5L Lab Omnidirectional Ball Mill Wet Grinding Painting / Coating / Pigment Lab Stirring Ball Mill
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Hồ Nam, Trung Quốc |
| Hàng hiệu: | TENCAN |
| Chứng nhận: | CE ISO |
| Số mô hình: | JM-5 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 bộ |
|---|---|
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Vỏ gỗ dán + Bọt |
| Thời gian giao hàng: | 7-10 ngày làm việc |
| Điều khoản thanh toán: | T/T, Western Union |
| Khả năng cung cấp: | 100 bộ mỗi tháng |
|
Thông tin chi tiết |
|||
| Tên sản phẩm: | Máy nghiền bi khuấy loại nhẹ | Mô hình NO.: | JM-5 |
|---|---|---|---|
| Điện áp: | 220V-50HZ | Sức mạnh: | 0,75KW |
| Tốc độ quay: | 50-560 vòng / phút | Kiểm soát tốc độ: | Kiểm soát tần số |
| Tổng khối lượng: | 5L | Khả năng tối đa: | 1.75L |
| Làm nổi bật: | Lab Omnidirectional Ball Mill,5L Stirring Ball Mill,Pigment Lab Stirring Ball Mill |
||
Mô tả sản phẩm
Tencan JM-5 5L Lab Omnidirectional Ball Mill Wet Grinding Painting / Coating / Pigment Lab Stirring Ball Mill
Overview
The stirred ball mill is a high-efficiency grinding system designed for ultra-fine particle size reduction and homogeneous dispersion. Utilizing a unique agitation mechanism, this advanced equipment achieves superior grinding performance compared to conventional ball mills, making it ideal for both laboratory research and industrial production applications.
Working Principle
When machine rotates at high speed under driving of main axis and grind media move irregularly at the same time, the grind material can be crushed, ground and sheared into fine granularity powder. The size, shape and matching ratio of the grind media can affect the grinding result. Generally speaking, the bigger the mill media is, the finer the grinding powder is. A proper match ratio of grind medias and proper adjustment of rotation speed can get better grinding effect.
Applications
Battery Materials: Precise grinding of electrode materials
Ceramics Processing: Uniform dispersion of ceramic powders
Coatings Production: Finer particle size distribution
Pharmaceuticals: Controlled particle size reduction
Chemical Industry: Efficient mixing and grinding
Features
1.High-Efficiency Grinding System
Achieves particle sizes down to nanometer range (100nm)
40-60% higher energy efficiency than traditional ball mills
Variable speed control (100-1500 RPM) for optimized processing
2.Advanced Design Components
Robust stainless steel construction with corrosion-resistant finishes
Specially designed agitator for maximum energy transfer
Optional cooling/heating jacket for temperature-sensitive materials
3.Precision Process Control
Digital control panel with programmable parameters
Real-time temperature and speed monitoring
Safety interlock system for operator protection
Technical Parameters
| Technical Parameters of Tencan Light Type Stirred Ball Mill | ||||||||
| Model No. | Rotate Speed (RPM) |
Total Volume (L) |
Max Load Volume (L) |
Power Supply | Available Jars | Feed Sizes (mm) |
Output Granularity (μm) |
Control Mode |
| JM-5L | 60-560 | 5 | 1.75 | 220V/0.75KW | Stainless Steel Jar Nylon Mill Jar Corundum Mill Jar PU Mill Jar Zirconia Mill Jar Agate Mill Jar PTFE Mill Jar |
≤5mm | ≤1μm | Frequency Converter or Fixed Speed setting at buyer's option |
| JM-10L | 60-560 | 10 | 3.50 | 220V/1.5KW | ≤10mm | ≤1μm | ||
| JM-15L | 60-380 | 15 | 5.25 | 380V/2.2KW | ≤10mm | ≤1μm | ||
| JM-20L | 60-380 | 20 | 7.00 | 380V/2.2KW | ≤10mm | ≤1μm | ||
Available Mill Jars & Balls
As a professional manufacturer of planetary ball mill, we not only supply various kinds of planetary ball mills, but also provide all kinds of accessories of mill jars and mill balls in full sizes.
Available mill jars: 304 or 316L stainless steel mill jars, agate mill jars, , Alumina ceramic mill jars (corundum ) zirconia mill jars, silicon nitride mill jars, nylon mill jars, PU mill jars, tungsten carbide mill jars, PTFE mill jars, and etc.
Available mill balls in full sizes: Tungsten carbide balls, Agate balls, Zirconia balls, Stianless steel Balls, Alumina balls, and etc.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
