Product Overview
The Stirred Ball Mill comprises a grinding chamber filled with specialized media, an efficient stirring mechanism, and integrated auxiliary systems including material circulation, temperature control, timing, and speed regulation. This configuration delivers outstanding processing efficiency and precise particle size reduction, meeting diverse industrial application requirements. As an economical solution offering small-batch processing capabilities with minimal energy consumption, the stirred ball mill serves as an ideal tool for material development and coating research in academic institutions, R&D centers, and industrial laboratories.
Technical Features:
-
Optimized Energy Efficiency
The system delivers exceptional energy utilization rates, achieving substantial power conservation during operation.
-
Adjustable Particle Size Control
Final product granularity can be precisely regulated through flexible grinding duration settings.
-
Smooth Low-Noise Operation
Advanced engineering ensures minimal vibration transmission and reduced acoustic levels for improved workplace comfort.
-
Intuitive User Experience
Streamlined mechanical design combined with straightforward controls enables effortless operation and maintenance.
-
Multi-Process Versatility
Adaptable to diverse production requirements through configurable continuous or batch processing modes.
-
Temperature-Managed Grinding

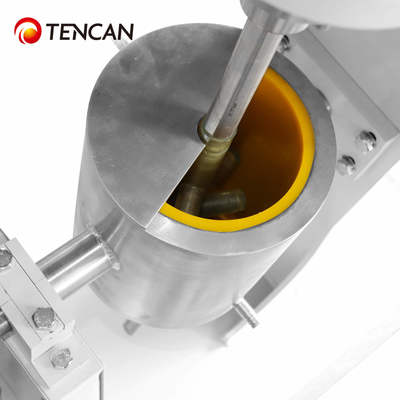

Jacketed milling chamber enables active thermal regulation throughout the grinding cycle.
-
Customizable Performance Packages
Tailored solutions available including programmable timing, variable speed settings, material recycling systems, and precision temperature management.
-
Material-Compatible Configurations
Selection of grinding chambers in stainless steel, corundum ceramic, polyurethane, or zirconia to match specific application needs.
Technical Parameters:
| Technical Parameters |
Details |
| Product Name |
Stirring Ball Mill |
| Key Word |
Stirring Ball Mill |
| Brand Name |
Tencan |
| Max Capacity |
3.5L |
| Voltage |
220V/50Hz, 110V-60Hz |
| Output (kg/h) |
1 - 3.5 Kg/h |
| Power |
1.5KW |
| Max Feeding Size |
10 mm |
| Output Size (mesh) |
400-12500 Mesh |
| Warranty |
1 YEAR |
Stirred Ball Mill - Advanced Sample Processing Solution
Product Specifications:
-
Brand: TENCAN
-
Model: JM-10
-
Origin: Hunan, China
-
Certification: ISO & CE
-
Minimum Order: 1 unit
-
Pricing: Negotiable
-
Packaging: Protective plywood case with foam inserts
-
Delivery Lead Time: 15-20 business days
-
Payment Method: T/T
-
Monthly Production Capacity: 220 units
-
Spindle Speed Range: 60-560 RPM
-
Maximum Processing Volume: 3.5L
-
Output Fineness: 400-12500 mesh
-
Power Supply: 220V/50Hz or 110V/60Hz
-
Warranty Coverage: 12 months
Product Applications:
Are conventional grinding techniques failing to meet your efficiency requirements? Seeking precision processing for diverse materials? Discover TENCAN's Stirred Ball Mill - engineered for research institutions, universities, and industrial applications. Our technology serves multiple sectors including metallurgical analysis, geological research, chemical processing, construction materials, advanced ceramics, pharmaceutical development, environmental science, energy innovation, and agricultural research.
Technical Performance:
Featuring vertical agitation technology, the JM-10 delivers high-rotation grinding efficiency with exceptional operational stability. User-friendly controls simplify operation while maintaining processing consistency. With 3.5L maximum capacity and adjustable output ranging from 400 to 12,500 mesh, the system accommodates extensive material varieties with uncompromised precision.
Quality Commitment:
Backed by decade-long manufacturing expertise, TENCAN guarantees superior build quality and reliable performance. All equipment meets international certification standards and is supported by comprehensive warranty protection and flexible commercial terms.
Enhance your sample preparation capabilities with TENCAN's precision engineering. Contact our technical team for detailed specifications and ordering information.
Customization:
Stirred Ball Mill – Customized Services
Brand Name: TENCAN
Model Number: JM-10
Place of Origin: Hunan China
Certification: ISO CE
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Plywood case with Foam
Delivery Time: 15-20 Days
Payment Terms: T/T
Supply Ability: 220 Set/Sets per Month
Max Capacity: 3.5L
Key Word: Stirring Ball Mill, stirring ball mill lab, stir ball mill, stirred ball mill machine
Voltage: 220V/50Hz,110V-60Hz
Power: 1.5KW
Max Feeding Size: 10 Mm
Packing and Shipping:
Stirred Ball Mill Packaging and Shipping
The Stirred Ball Mill is carefully packaged in a sturdy wooden case to ensure safe delivery. Each piece of equipment is wrapped in protective material and placed securely in the case to prevent damage during transportation.
For international shipments, the package is also secured with metal straps and marked with appropriate labeling and handling instructions to comply with customs regulations.
Once the package is ready for shipping, it is loaded onto a truck or shipped by air or sea, depending on the customer's preference and location.
We strive to provide efficient and timely delivery of our products. Our team carefully monitors the shipment progress to ensure that the Stirred Ball Mill arrives at its destination in perfect condition.
For any further inquiries or special packaging requests, please do not hesitate to contact us.
Shipping Options:
- Truck
- Air freight
- Sea freight
Estimated Shipping Time:
- Domestic: 10-18 business days
- International: 15-20 business days
Thank you for choosing our Stirred Ball Mill. We hope it will bring you great satisfaction and success in your work.
