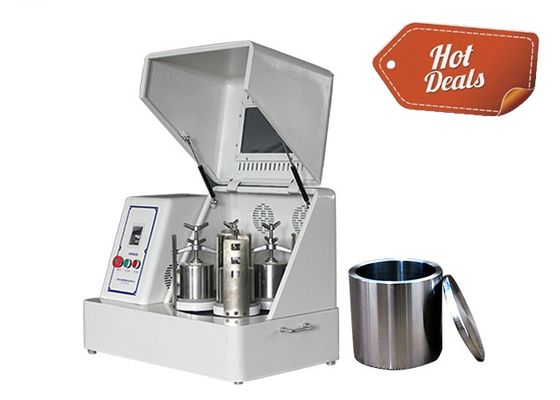

Tencan 6L Stainless Steel Square Vertical Planetary Ball Mill for Lab Powder Grinding
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Hồ Nam, Trung Quốc |
| Hàng hiệu: | TENCAN |
| Chứng nhận: | ISO CE |
| Số mô hình: | XQM-6 |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 BỘ |
|---|---|
| Giá bán: | có thể đàm phán |
| chi tiết đóng gói: | Thùng+bọt |
| Thời gian giao hàng: | 3-7 ngày làm việc sau khi nhận được thanh toán đầy đủ |
| Điều khoản thanh toán: | T/T, Công Đoàn Phương Tây |
| Khả năng cung cấp: | 300 bộ mỗi tháng |
|
Thông tin chi tiết |
|||
| Tên của bản nhạc: | Hình vuông hình dạng phòng thí nghiệm thẳng đứng nhà máy | Mẫu số: | XQM-6 |
|---|---|---|---|
| Tổng khối lượng: | 6l | Công suất tối đa: | 1.98L |
| Tốc độ quay: | 70-670 vòng / phút | Kiểm soát tốc độ: | Kiểm soát tần số |
| Điện áp: | 220V-50Hz hoặc 110V-60Hz | Quyền lực: | 0,75kW |
| Làm nổi bật: | 6L stainless steel lab ball mill,vertical planetary ball mill,lab powder grinding machine |
||
Mô tả sản phẩm
Square Laboratory Ball Mill – 4 Stations for Advanced Material Processing
The Square Laboratory Ball Mill is a versatile, high-performance milling device designed for advanced material research and small-batch production. Its four-station layout allows simultaneous processing of multiple samples, improving lab efficiency, while optional vacuum jars enable controlled-environment milling for oxygen-sensitive materials.
Key Benefits:
-
Multi-Sample Processing: Four independent grinding stations for concurrent operation.
-
High-Energy Milling: Planetary motion generates strong mechanical forces for ultrafine powders.
-
Dry & Wet Grinding: Handles materials with varying properties, from powders to nanomaterials.
-
Precision & Safety: Gear-driven system, programmable operation, and integrated safety protections.
Working Principle
The planetary motion of the jars creates strong impact and shear forces on the grinding media and materials. With two or four jars per platform, the mill efficiently reduces particle sizes from micron to nanometer scale. The unit supports both dry and wet grinding techniques and is suitable for diverse materials, including ceramics, electronic components, battery materials, and nanoparticles.
Applications
| Industry / Field | Application Example |
|---|---|
| Materials Science | Electronic ceramics, structural ceramics, dielectric materials |
| Energy Storage | Lithium-ion battery cathodes, fuel cell components |
| Advanced Manufacturing | Catalysts, phosphors, rare earth materials |
| Electronics | Varistors, thermistors, multilayer ceramic capacitors |
| Nanotechnology | Nanoparticle and composite material synthesis |
Technical Features
| Technical Features | |
| Drive Mode | Gear drive and belt drive |
| Operate Mode | Two or four grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Size | Soil material≤3mm |
| Output Granularity | Minimum 0.1μm |
| Rotational Speed Ratio | /1/2 |
| Max.Continuous Operating Time | 72hours |
| Materials of Jar | stainless steel.agate,nylon,corundum,zirconia,etc |
Technical Parameters
| Main Parameters of Vertical Planetary Mill Ball (SquareType) | |||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
| XQM-1 | 0.75 | 220V-50Hz | 750*470*564 | 35-325 | 70-670 |
| XQM-2 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-4 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
| XQM-6 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 |
Accessories: Grinding Pots & Balls
| References for Matchable Jar Sizes with Square Shape Planetary Ball Mill | ||||
| Model No. | Total Volume (L) |
Matchable Jar Sizes |
Matchable Jars Quantity |
Matchable Vacuum Jar Sizes |
| XQM-2 | 2.0L | 50-500ml | 2pcs or 4pcs | 50-250ml |
| XQM-4 | 4.0L | 250-1000ml | 2pcs or 4pcs | 50-1000ml |
| XQM-6 | 6.0L | 1-1.5L | 2pcs or 4pcs | 50-1000ml |
| XQM-8 | 8.0L | 1-2L | 2pcs or 4pcs | 50-1500ml |
| XQM-10 | 10L | 1-2.5L | 2pcs or 4pcs | 1-2L |
| XQM-12 | 12L | 1-3L | 2pcs or 4pcs | 1-2L |
| XQM-20 | 20L | 2-5L | 2pcs or 4pcs | 2-4L |
| XQM-40 | 40L | 5-10L | 2pcs or 4pcs | 5L |
| XQM-60 | 60L | 10-15L | 2pcs or 4pcs | 10L |
| XQM-100 | 100L | 20-25L | 2pcs or 4pcs | 20L |
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. |
Vacuum mill jar |
Available Grinding Balls (Full Sizes Offered)
| References About Grinding Medias & Materials | ||
| Materials of Grinding Media |
Hardness (Mohs) |
Features |
| Zirconia Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Stainless Steel Balls | ≥6.0 | Wear-resistant, general corrsion resistance, high temperature resistance. |
| Agate Balls | ≥7.0 | Super wear-resistance, used for medicine,food and other materials which can not be contaminated with metal, corrosion, and high temperature resistance. |
| Alumina Balls | ≥8.5 | Wear-resistant, corrsion resistance and high temperature resistance. |
| Tungsten Carbide Balls | ≥9.0 | Super wear-resistance, without any impurity, corrosion & high temperature resistance. |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | √ | ||||
| Corundum Mill Jar | ▲ | √ | ▲ | ||
| Stainless Steel Mill Jar | √ | ||||
| Zirconia Mill Jar | ▲ | √ | |||
| Nylon Mill Jar | ▲ | √ | |||
| PTFE Mill Jar | √ | ▲ | |||
| Polyurethane Mill Jar | √ | ▲ | |||
| Tungsten Carbide Mill Jar | ▲ | √ | |||
| √ means: most suitable ▲ means: suitable | |||||
