1800°C Ultra-High Temperature Muffle Furnace for Advanced Material Processing
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | TENCAN |
| Chứng nhận: | CE |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Thời gian giao hàng: | 7~15 |
| Điều khoản thanh toán: | L/C,D/A,D/P,T/T,Western Union |
|
Thông tin chi tiết |
|||
| Loại sản phẩm: | Lò nung kiểu hộp thí nghiệm | Nhiệt độ tối đa: | 1800 ° C. |
|---|---|---|---|
| Nhiệt độ làm việc: | 1700 ° C. | Thể tích buồng: | 1L~729L, Có thể tùy chỉnh |
| yếu tố làm nóng: | Kháng nhiệt dây | Kiểm soát nhiệt độ: | Điều khiển PID lập trình 50 đoạn |
| lót lò: | Sợi Mullite đa tinh thể | thiết kế làm mát: | Vỏ hai lớp có quạt làm mát |
| Bảo vệ an toàn: | Bảo vệ báo động quá nhiệt | Ứng dụng: | Thiêu kết, nấu chảy và phân tích vật liệu |
| Làm nổi bật: | Ultra-High Temperature Muffle Furnace,1800°C Muffle Furnace,Material Processing Muffle Furnace |
||
Mô tả sản phẩm

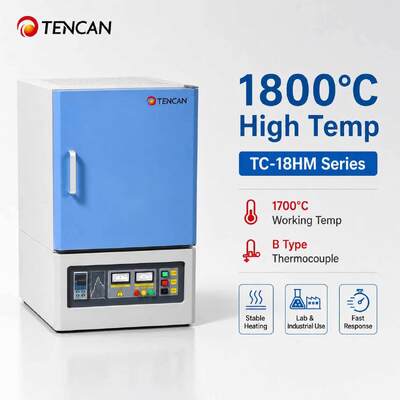

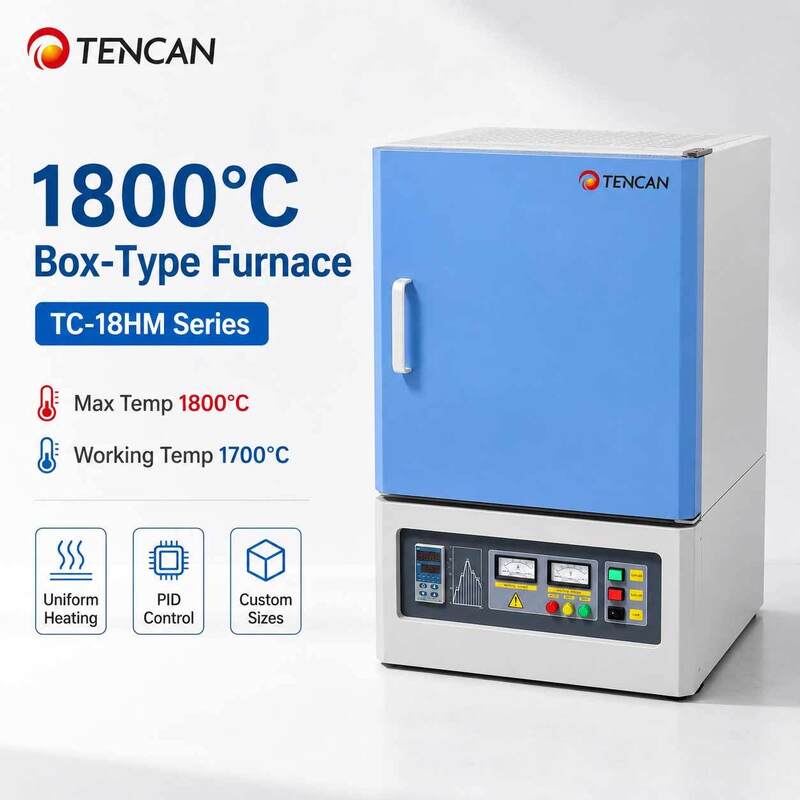

1800°C Ultra-High Temperature Muffle Furnace
The 1800°C Ultra-High Temperature Muffle Furnace is developed for demanding thermal processes that require extremely high operating temperatures, excellent temperature stability, and reliable long-term performance. It is suitable for advanced ceramic sintering, zirconia material processing, powder metallurgy, metal and non-metal heat treatment, material research, and high-temperature laboratory testing.
Designed as an electric box-type furnace, this 1800°C muffle furnace provides a clean and enclosed heating chamber to help protect samples during sintering, firing, calcination, and thermal analysis. The independent furnace chamber reduces direct exposure between the material and heating elements, supporting more consistent processing results and lower contamination risk.

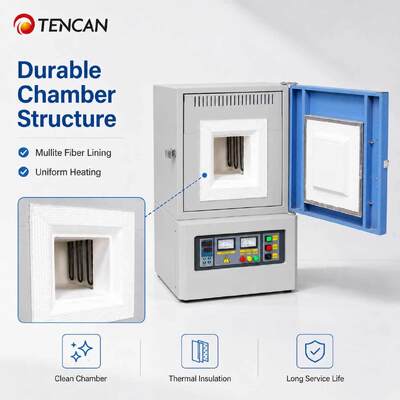

The furnace insulation system is built with high-performance refractory fiber materials, offering strong heat retention, reduced heat loss, and improved energy efficiency during ultra-high-temperature operation. Its reinforced chamber structure enhances durability and helps maintain furnace stability during repeated heating and cooling cycles.
With precise temperature control, stable heating performance, and dependable safety protection, this 1800°C muffle furnace is an ideal solution for universities, research institutes, dental material laboratories, ceramic manufacturers, powder metallurgy facilities, and industrial R&D centers that require advanced high-temperature processing equipment.
Product Features
- Maximum temperature range: room temperature to 1800°C.
- Available chamber capacities from 1 L to 1000 L.
- Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
- Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.
- Intelligent 50-segment programmable automatic temperature control.
- Built-in over-temperature alarm for safer operation.
- Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.
1200°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-12N-1 | 1200 | 1100 | 100×100×100 | 1 | 0.8 | 1 | Type K |
| TC-12N-3 | 1200 | 1100 | 150×150×150 | 3 | 2.5 | 1 | Type K |
| TC-12N-8 | 1200 | 1100 | 200×200×200 | 8 | 5 | 1 | Type K |
| TC-12N-12 | 1200 | 1100 | 200×200×300 | 12 | 6 | 1 | Type K |
| TC-12N-36 | 1200 | 1100 | 300×300×400 | 36 | 10 | 3 | Type K |
| TC-12N-64 | 1200 | 1100 | 400×400×400 | 64 | 16 | 3 | Type K |
| TC-12N-125 | 1200 | 1100 | 500×500×500 | 125 | 25 | 3 | Type K |
| TC-12N-216 | 1200 | 1100 | 600×600×600 | 216 | 36 | 3 | Type K |
| TC-12N-512 | 1200 | 1100 | 800×800×800 | 512 | 64 | 3 | Type K |
| TC-12N-729 | 1200 | 1100 | 900×900×900 | 729 | 80 | 3 | Type K |
1400°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-14S-1 | 1400 | 1300 | 100×100×100 | 1 | 1 | 1 | Type S |
| TC-14S-3 | 1400 | 1300 | 150×150×150 | 3 | 3 | 1 | Type S |
| TC-14S-8 | 1400 | 1300 | 200×200×200 | 8 | 5 | 1 | Type S |
| TC-14S-12 | 1400 | 1300 | 200×200×300 | 12 | 7 | 1 | Type S |
| TC-14S-36 | 1400 | 1300 | 300×300×400 | 36 | 11 | 3 | Type S |
| TC-14S-64 | 1400 | 1300 | 400×400×400 | 64 | 18 | 3 | Type S |
| TC-14S-125 | 1400 | 1300 | 500×500×500 | 125 | 27 | 3 | Type S |
| TC-14S-216 | 1400 | 1300 | 600×600×600 | 216 | 40 | 3 | Type S |
| TC-14S-512 | 1400 | 1300 | 800×800×800 | 512 | 70 | 3 | Type S |
| TC-14S-729 | 1400 | 1300 | 900×900×900 | 729 | 88 | 3 | Type S |
1700°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-17M-1 | 1700 | 1600 | 100×100×100 | 1 | 1 | 1 | Type B |
| TC-17M-3 | 1700 | 1600 | 150×150×150 | 3 | 4 | 1 | Type B |
| TC-17M-8 | 1700 | 1600 | 200×200×200 | 8 | 7 | 1 | Type B |
| TC-17M-12 | 1700 | 1600 | 200×200×300 | 12 | 8 | 1 | Type B |
| TC-17M-36 | 1700 | 1600 | 300×300×400 | 36 | 12 | 3 | Type B |
| TC-17M-64 | 1700 | 1600 | 400×400×400 | 64 | 20 | 3 | Type B |
| TC-17M-125 | 1700 | 1600 | 500×500×500 | 125 | 30 | 3 | Type B |
| TC-17M-216 | 1700 | 1600 | 600×600×600 | 216 | 45 | 3 | Type B |
| TC-17M-512 | 1700 | 1600 | 800×800×800 | 512 | 80 | 3 | Type B |
| TC-17M-729 | 1700 | 1600 | 900×900×900 | 729 | 96 | 3 | Type B |

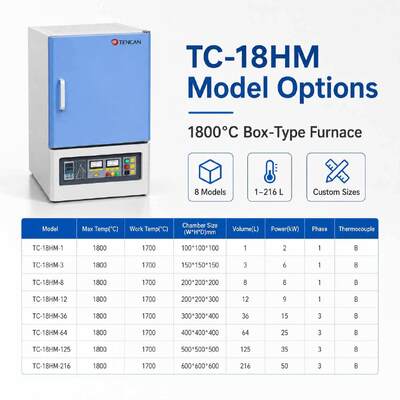

1800°C Box Furnace Technical Specifications
| Model | Max. Temperature |
Working Temperature |
Chamber Size mm |
Volume |
Power |
Phase | Thermocouple Type |
|---|---|---|---|---|---|---|---|
| TC-18HM-1 | 1800 | 1700 | 100×100×100 | 1 | 2 | 1 | Type B |
| TC-18HM-3 | 1800 | 1700 | 150×150×150 | 3 | 6 | 1 | Type B |
| TC-18HM-8 | 1800 | 1700 | 200×200×200 | 8 | 8 | 1 | Type B |
| TC-18HM-12 | 1800 | 1700 | 200×200×300 | 12 | 9 | 1 | Type B |
| TC-18HM-36 | 1800 | 1700 | 300×300×400 | 36 | 15 | 3 | Type B |
| TC-18HM-64 | 1800 | 1700 | 400×400×400 | 64 | 25 | 3 | Type B |
| TC-18HM-125 | 1800 | 1700 | 500×500×500 | 125 | 35 | 3 | Type B |
| TC-18HM-216 | 1800 | 1700 | 600×600×600 | 216 | 50 | 3 | Type B |
Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.
Related Accessories
Standard Accessories
- Furnace door insulation brick
- High-temperature gloves
- Crucible tongs
- User manual
- Spare heating elements for 1400°C and 1700°C models
Optional Accessories
- HD touchscreen controller
- Exhaust port
- Observation window
- Multi-layer kiln furniture
- Alumina crucible
- Communication software
